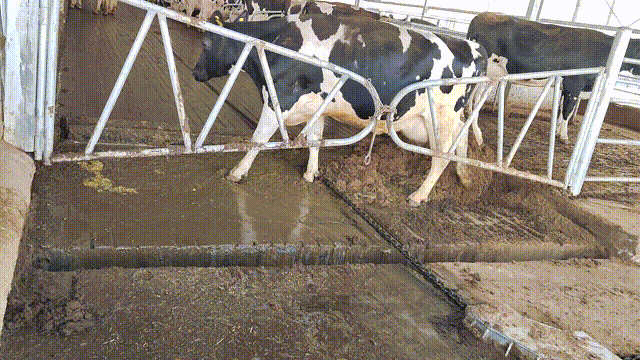

智能刮板--案例15[返回]


整机部件:电机减速器、驱动单元总成、转角系统、传动链、刮粪机、控制系统等,工作原理是驱动单元拖动刮粪机通过链条进行往复运动,刮粪机在清粪时向前移动,刮粪器在退粪时不清粪。它适用于粪肥路单向距离>120m的谷仓环境。

The whole machine components: motor reducer, drive unit assembly, corner system, transmission chain, manure scraper, control system, etc., the working principle is that the drive unit drags the scraper through the chain to carry out a reciprocating movement, the scraper moves forward when the manure is cleared, and the manure is not cleared when the scraper is retreated. It is suitable for manure road one-way distance > 120 m barn environment.


该系统的主要特点是实用、节能、安全、智能。该粪肥清洗系统能保证牛棚时刻保持清洁,不影响牛的行走、饲养和休息,安装方便,工作安全可靠,运行无噪音,维护成本低。

The main features of the system are practical, energy-saving, safe and intelligent. The manure cleaning system can ensure the cleanliness of the cowshed at all times, does not have any impact on the walking, feeding and rest of the cattle, is easy to install, safe and reliable work, noiseless operation, and low maintenance cost.


公司率先研制成功了目前国内最 先进、单向清粪回路最长的刮板式自动清粪控制系统,也是国内首个应用霍尔定位技术的刮板式清粪系统,其使用寿命长得到了老用户的一致认可。国家专利产品,专利号:ZL 2014 2 08597 38.9等。根据粪肥通道的长度,该产品可分为单轴转向刮板清粪系统和三轴转向刮板净粪系统。

The company took the lead in developing the successful scraper automatic manure removal control system, which is currently the most advanced in China, the longest one-way manure cleaning loop, and the first scraper manure removal system that applies Hall positioning technology, and its long service life has been unanimously recognized by old users. National patented products, patent number:  ZL 2014 2 08597 38.9, etc. According to the length of the manure channel, the product can be divided into single-axis steering scraper manure cleaning system and three-axis steering scraper manure cleaning system.


参数 parameter

表面处理

热浸镀锌

Surface treatment

hot-dip galvanized

电机

2.2kw380V

Motor

2.2kw, 380V

清洗路线长度

150m~240m

Cleaning route length

150m~240m

清洗速度

4~6m/min

Cleaning speed

4~6m/min

链条:

高强度矿用链条,每节尺寸14*50mm,断裂载荷250kN

Chain

high-strength mining chain, the size of each section is 14*50mm, and the breaking load is 250kN

工作时不需要监督,只需按下按钮打开它,它就会自动来回刮粪便。

There is no need to be supervised when working, just press the button to turn it on, and it will automatically scrape the feces back and forth.
